CENTRE USINAGE VERTICAL 5 AXES
MAKE : HURON
TYPE : EX 10
NEW IN : 2002
Control: CNC
Location: Stock
Origin: Frankreich
Quotation: free loaded on truck
Term of delivery: immediately

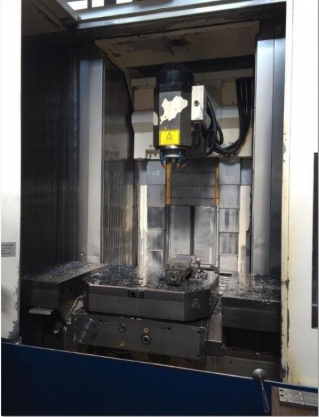

5 Axis Machining Center
Machine is in very good condition, only 8.433 spindle hours.
2-position (vertical and horizontal) head (a-axis)

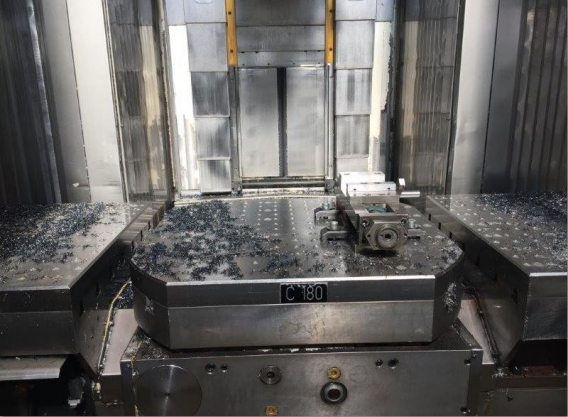

with turn table (800 x 700 mm) and 2 fixed tables (a table on either side of the turntable ; 520 x 700 mm)
x-travel 1200 mm
y-travel 700 mm
z-travel 800 mm

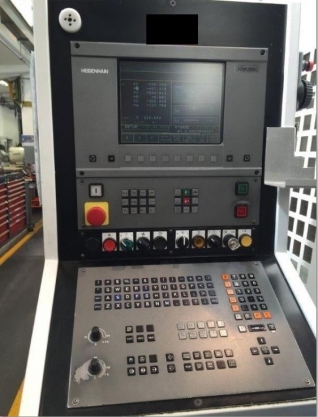

control HEIDENHAIN TNC 430
tool taper HSK 63 A
turning speeds 14.000 U/min
0 25 kW
Torque 256 mN
b-axis +- 90 °
turning table 800 x 700 mm
table load 1200 kg
2x fixed table 520 x 700
table load 780 kg
rapid traverse 30 m/min
tool change unit 32-fach
max. tool weight 10 kg
max. tool diameter 100 mm
max. tool length 300 mm
tool changing time 10-12 sec
total power requirement 60 kW
weight of the machine ca. 18 t
dimensions of the machine ca. 7,26 x 5,8 x 3,73 m
Price : On request*
* machine available except selling meanwhile
