1 used 5-axis CNC universal gantry type milling machine
model JOBS (ITALY)
type LinX Compact

new in 2002/under power since 2003
appr. 11,000 h spindle on

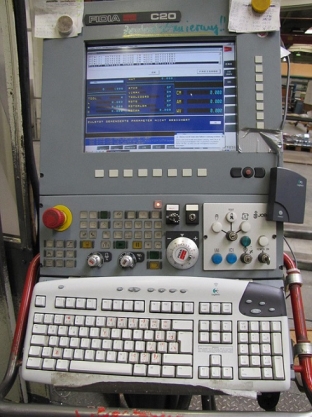

• CNC-contouring-control by FIDIA C 20 (PCD 356)

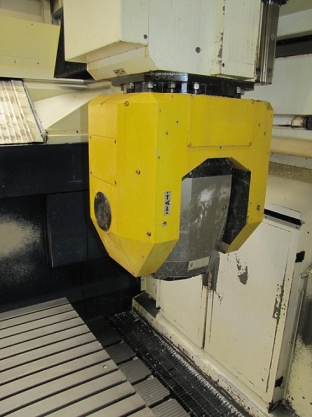

• CNC universal milling head T2K-S (C-axis +-200° / A-axis –90/+100°)

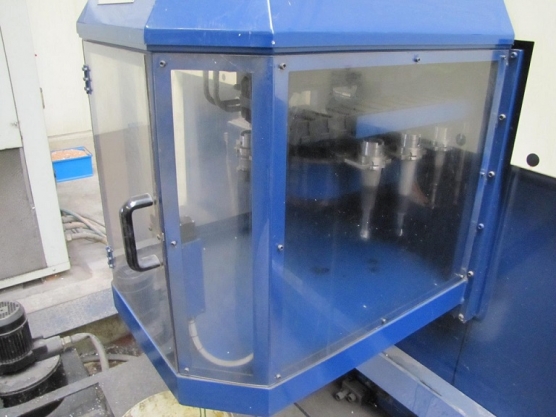

• 16-fold tool changer
• cooling through the spindle
• calliper RENISHAW MP 18
• 2 chip conveyorsplate size                                                  5,000 x 4,000 x 350     mmtable size                                                                                2,500 x 1,800     mm

  max. working length (travel X-axis)                                4,200     mm

  max. working height (travel Z-axis)                                 1,250     mm

  max. working width (travel Y-axis)                                  3,200     mm

  max. distance between columns                                        2,400     mm

  spindle speeds                                                                      250 up to 18,000     rpm..

  feeds                                                                                       up to 50,000     mm/min.

  rapid traverse                                                                      10,000     mm/min.

  taper                                                                                       HSK-A 63

  power capacity – spindle                                                   40     KW

  approx. weight                                                                     46     tons

  approx. required space (L x W x H)                                8,000 x 8,500 x 5,000     mm
