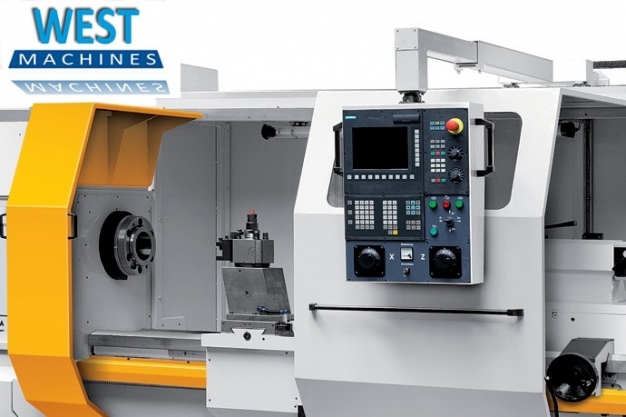

Tour CNC à banc plat
Marque : ZMM
Fabrication : UE
Modèle : LT 660
Machine neuve
| STANDARD MACHINE SPECIFICATION |
|
LT660 |
| CAPACITY |
Height of centers |
mm |
330 |
|
Swing over bed |
mm |
660 |
|
Swing over cross slide |
mm |
420 |
|
Width of bed |
mm |
560 |
|
Distance between centers |
mm |
1410; 1910; 2910; 3910; 4910; 5910 |
| SPINDLE |
Spindle nose DIN 55027 |
No |
11 |
|
Front bearing diameter |
mm |
140 |
|
Spindle bore |
mm |
103 |
|
Spindle taper |
Metric |
120 |
| HEAD STOCK |
Number of spindle speeds |
|
3 |
|
I – Range |
rpm |
9 – 55 |
|
II – Range |
rpm |
37 – 220 |
|
III – Range |
|
220 – 1320 |
| TRAVELS AND FEEDS |
Longitudinal feed (Z-axis) |
m/min |
8 (max) |
|
Lateral feed (X-axis) |
m/min |
8 (max) |
|
Rapid traverse (Z and X-axis) |
|
8 (max) |
|
Cross slide maximum travel |
mm |
430 |
| BALL SCREW |
Z-axis |
mm |
50 х 10 |
|
X-axis |
mm |
32 х 5 |
| TAIL STOCK |
Quill diameter |
mm |
105 |
|
Quill travel |
mm |
225 |
|
Quill taper |
Morse |
6 |
| DRIVES |
Main drive power |
kW |
15kW (AT160M4) |
|
Z-axis servo drive power |
kW/N.m |
18 N.m (3,77kW) (1FK7100) |
|
X-axis servo drive power |
kW/N.m |
11 N.m (2,29kW) (1FK7063) |
|
Spindle maximum torque |
N.m |
2000 |
|
Z-axis tow strength |
daN |
1250 |
|
X-axis tow strength |
daN |
1050 |
| TOOL HOLER |
Quick change type |
|
MC |
| CNC SYSTEM |
|
|
Siemens |
| WEIGHT |
For DBC 3000 mm |
kg |
5700 |
|
|
|
|
| CNC System and servo drives available also: Heidenhain; Fanuc; Fagor |
Prix HT (sur demande selon options) : machine neuve*
*délai à définir selon équipement et modèle
PRIX :
Contactez-nous
