Make : CITIZEN
Type : M20
New in : 2002
Control : CNC
Location : Stock Europe
Origin : Japan
Quotation : ex Site
Term of delivery : immédiatly except selling meanwhile

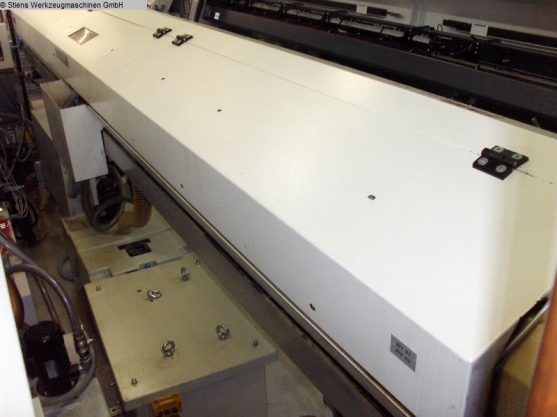

– incl. Bar Feeder FMB Turbo 3-26/3200 ´2002
– Operating-Hours: ca. 7.400h
turning length 320 mm
control Mitsubishi Meldas 635
Main spindle
working diameter 6 – 20 mm
working lenght 320 mm
Max. drilling diameter 10 mm
max. thread diameter M8
spindle passage 24 mm
turning speed range – stepless 200 – 10.000 U/min
C – Axis
drive capacity – spindle motor 2,2 / 3,7 kW
Subspindle
working diameter max. 20 mm
turning speed range – stepless 200 – 8.000 U/min
drive capacity – spindle motor 0,75 / 1,5 kW
life tools vertikal tool holder 4
turning speed range – drilling 200 – 5000 U/min
power capacity – driven tools 1 kW
Turret
turret (x-stations) 10
turning speed range – drilling 5.000 U/min
power capacity – driven tools 0,75 / 1,5 kW
worktool system
turning tool – shaft cross cut 12 x 12 x 130 mm
Tool holder, sleeve 25,4
Number of tools 5 pos.
Backside processing: 3 pos.
axis stroke :
x-axis 1: 98 mm
x-axis 2: 135 mm
x-axis 3: 235 mm
z-axis 1: 325 mm
z-axis 2: 202 mm
z-axis 3: 410 mm
y-axis 275 mm
rapid traverse 20 m/min
total power requirement 8 kVA
weight of the machine ca. ca. 2,8 t
dimensions of the machine ca. 9,5 x 2,0 x 2,0 m
Documents
bar feeder FMB Turbo 3-26
driven tools X: 3 / Z: 3 (6 pos.)
high pressure coolant 50bar
parts catcher
Signal-Light
bar feeder interface
Subspindle
collet chuck 145 E
Prix HT : sur demande*
* machine disponible sauf vente entre-temps
