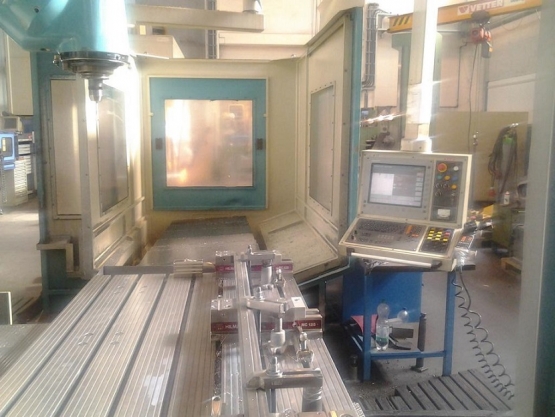

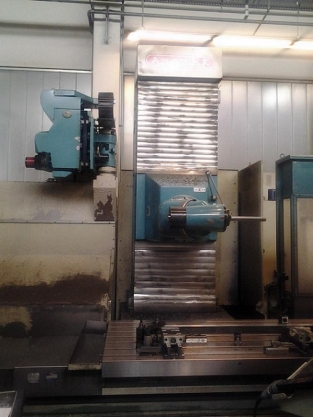

ANAYAK VH PLUS 3000
bed milling machine
nice equipped
YoM 2006
10.000 Spindle hours
Controller Heidenhain iTNC 530 with HR 410
Travels
X = 3.000 mm – moving table
Y = 1.500 mm – fixed RAM moving column
Z = 1.700 mm
Table size = 3.200mm x 1.100 mm
Taper DIN 69871 B
Inner coolant through spindle
Spindlespeed up to 5.000 rpm
Cooling device for spindle bearings and gear box
Automatic Gearbox ZF
Spindlepower 22/30 kW
Automatic milling head indexing every 2,5° each
Rapid feed = 20 m/min
ATC Chain type 40 Tools
Rigid taping
Touch probe M&H 20.000
Extra coolant tank with paper filter unit
Inner coolant for deep drilling operation up to 70 bar pressure
PRICE : On request via west-machines-outils@orange.fr*
* machine available except selling meanhwile
