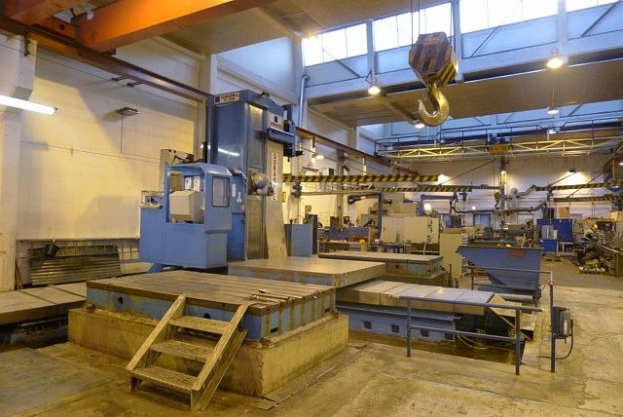

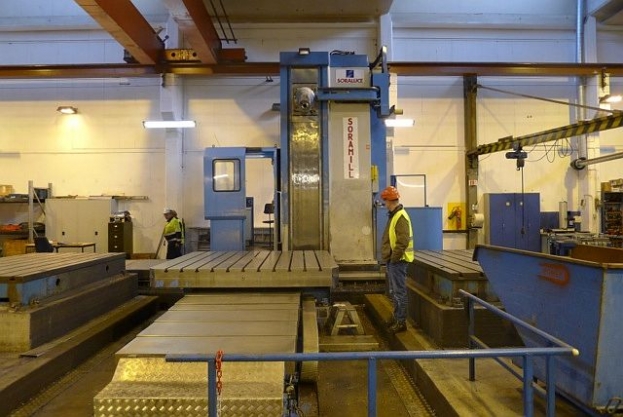

Milling Machine (floor type) (used machine)
Make : SORALUCE
New approx.: 1996
Controls : CNC controls HEIDENHAIN TNC 426
X-axis traverse 8000 mm
Y-axis traverse 2800 mm
Z-axis traverse 1500 mm
TABLE
table surface (left-right) 2500 mm
table surface (front-back) 2500 mm
workpiece load (max) 30000 kg
rotation 360 °
- positioning/indexing 0.001 °
WORKING SPINDLE / HEAD
spindle type tilting head
spindle revolutions (max) 2000/min
tool fixture ISO SK 50
drive power (max) 37 kW
DIMENSIONS / WEIGHTS
total weight approx. 45000 kg
ATTACHMENTS
coolant unit yes
chip conveyor yes
clamping angle 2
Spindle drive power: 37 kW
Feed speed: 5.000 mm/min
Rapid feed X – axis: 12.000 mm/min.
Rapid feed Y & Z axis: 15.000 mm/min
Universal automatic head
Taper ISO 50
Fixed horizontal head
Chain tool magazine 60 places
Chip conveyor
Total weight: 45 Ton
Features / Accessories:

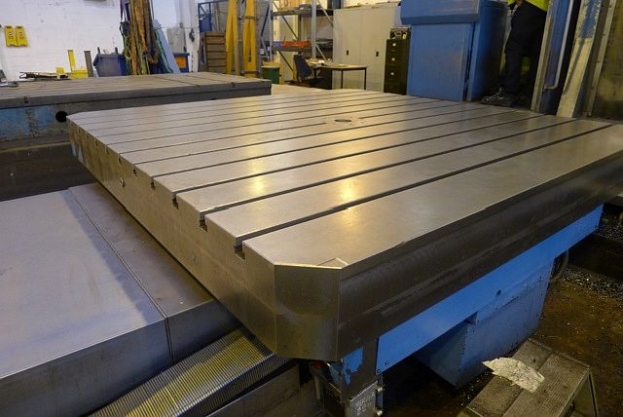

CNC ( Heidenhain ) rotary table Juaristi
Size: 2.500 x 2.500 mm
Capacity: 30 Ton
Longitudinal feed – W axis: 2.000 mm
Table rotation – B axis: 360.000 postions
Total weight: 16 Ton
PRICE : On request*
* Machine available except selling meanwhile
