TOUR CNC 3 AXES HARDINGE QUEST 51 SP

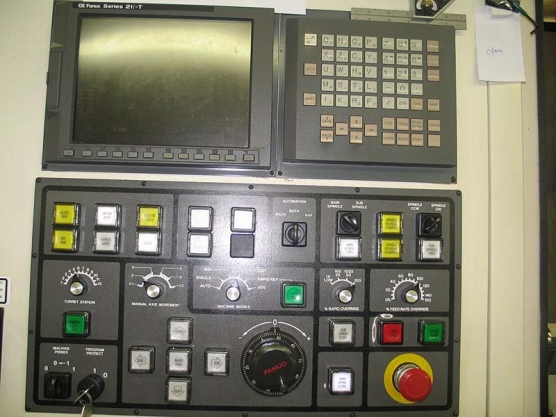

Control: Fanuc 21
General Specifications:
Swing Diameter: Over Bed: 20.4″
Capacities: Chuck Size: 8″
Standard Bar Capacity: 2″
Between Centers: 20.0″
Maximum Cutting Diameter: 21.1″
Spindle: Maximum Speed: 50 – 4,200 RPM
Through Hole 2.37″
Peak Horsepower: AC 20 HP
Spindle Nose: A2-6
Travels X Axis: 110 IPM
Z Axis: 1500 IPM
Turret: Number of Tools: 12
Boring Bar Size, Shank Diameter Max. 1.5″
Tool Size (O.D. Turning): 1.0″
Max. Slide Stroke (X / Y) 7.4″ x 20.5″
Miscellaneous: Weight: 12,240 Lbs.
Floor Space Requirement 76.5″ x 108.6″
Options: Control Fanuc 21
Tailstock
Live Tooling




PRIX : Contactez-nous
